STRYKER 100 - DIY Kit
4-6 WEEK LEAD TIME

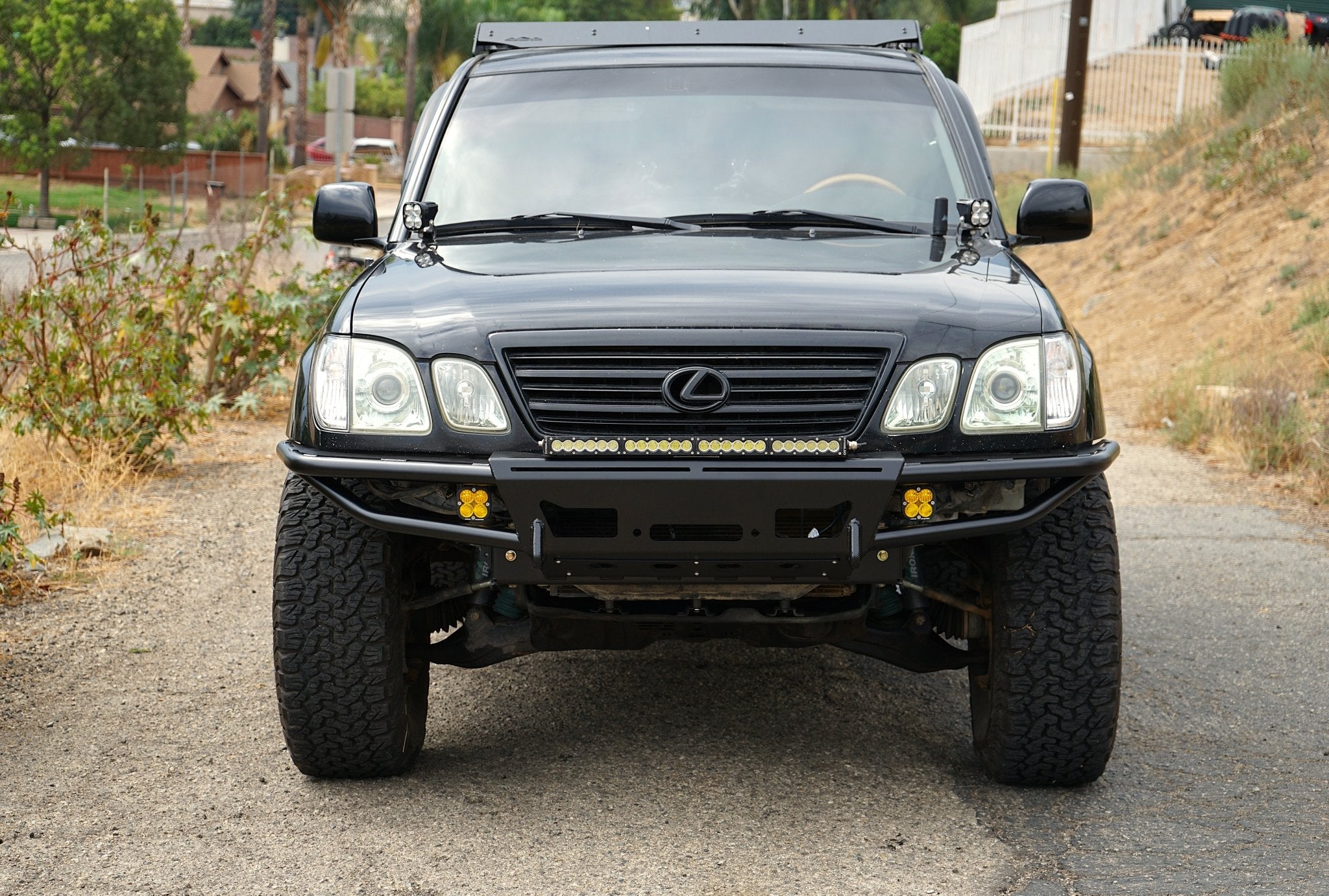

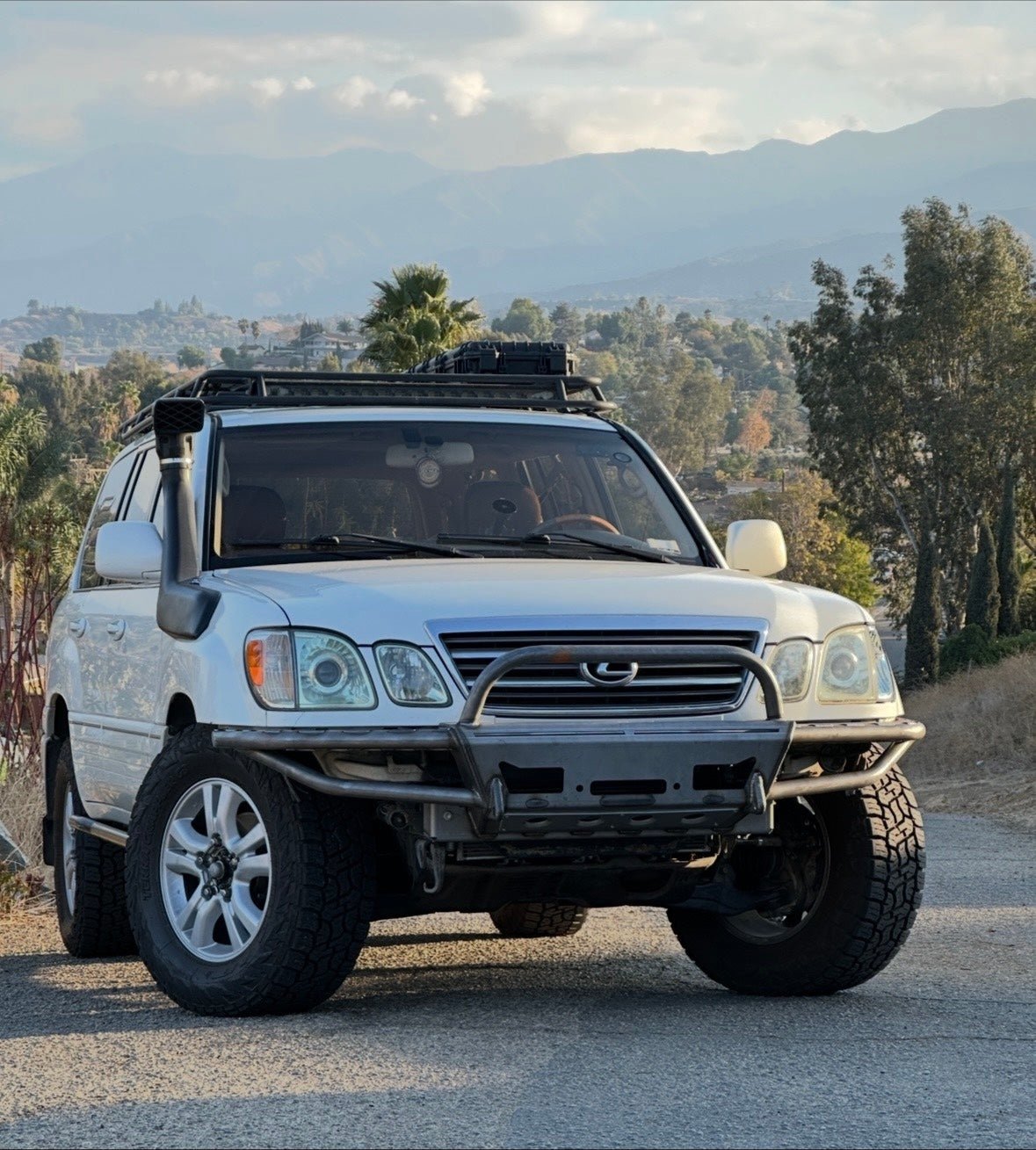

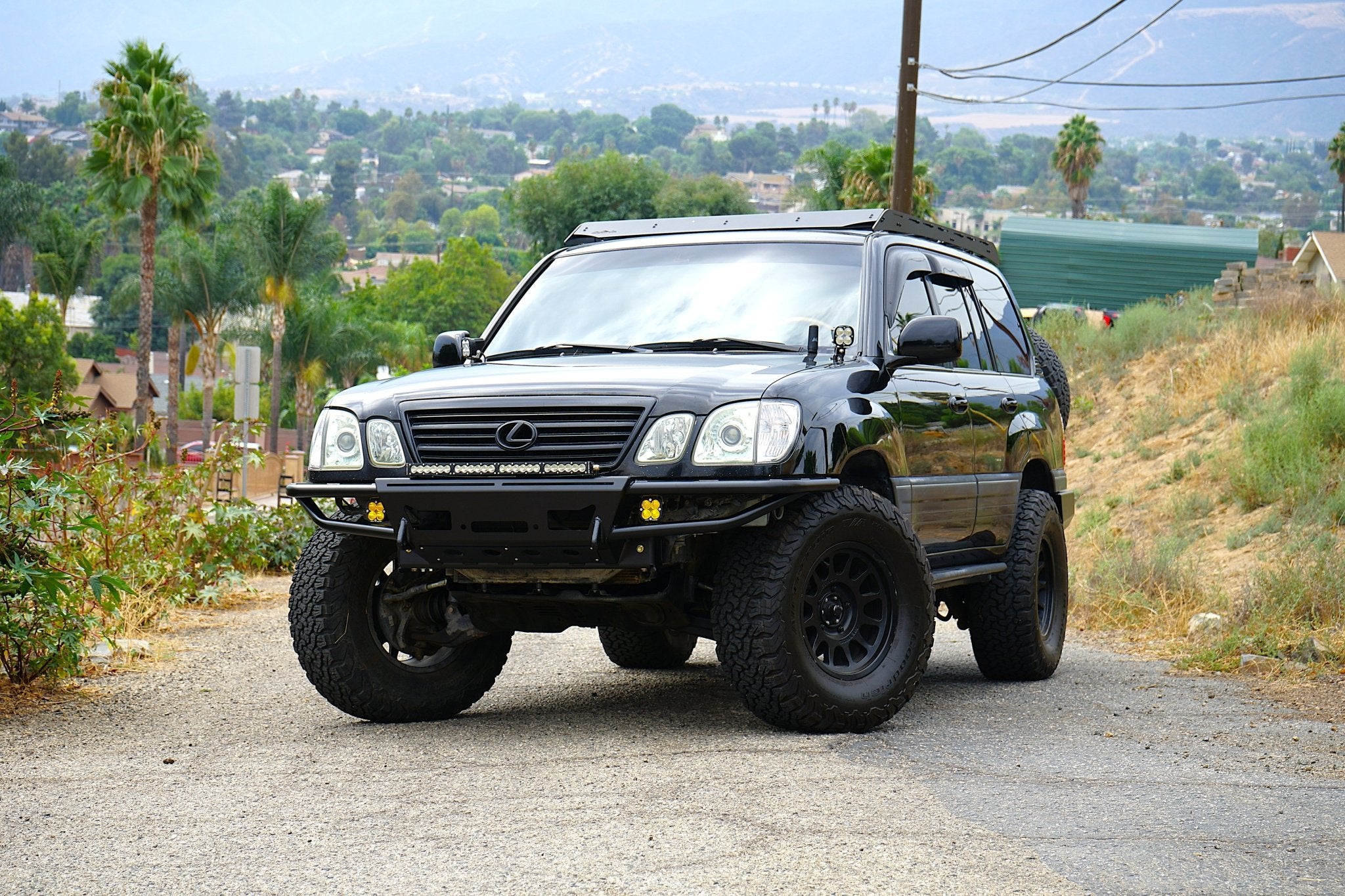

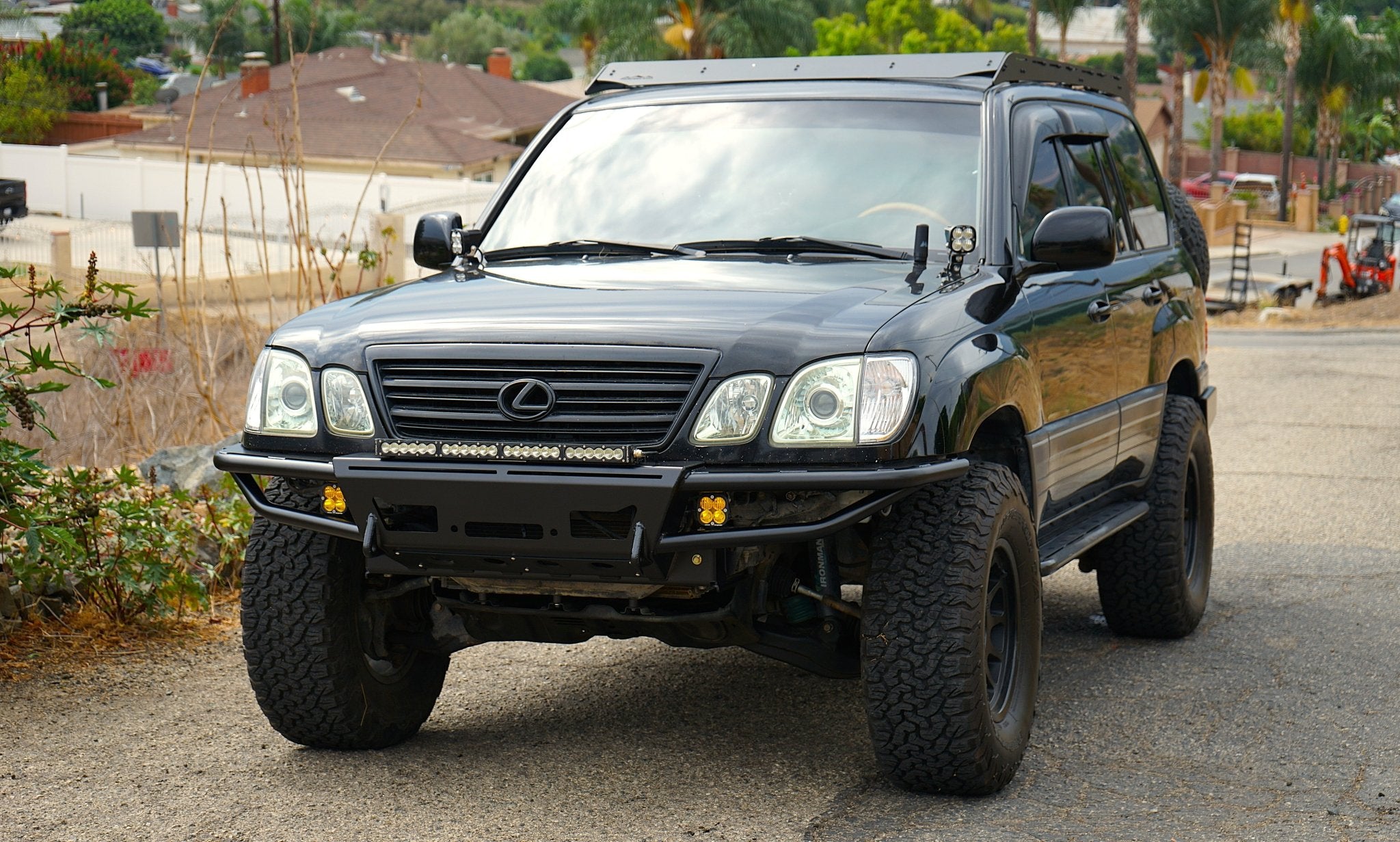

Fits LC100 and LX470 (minor trimming is required for the LX470 model)

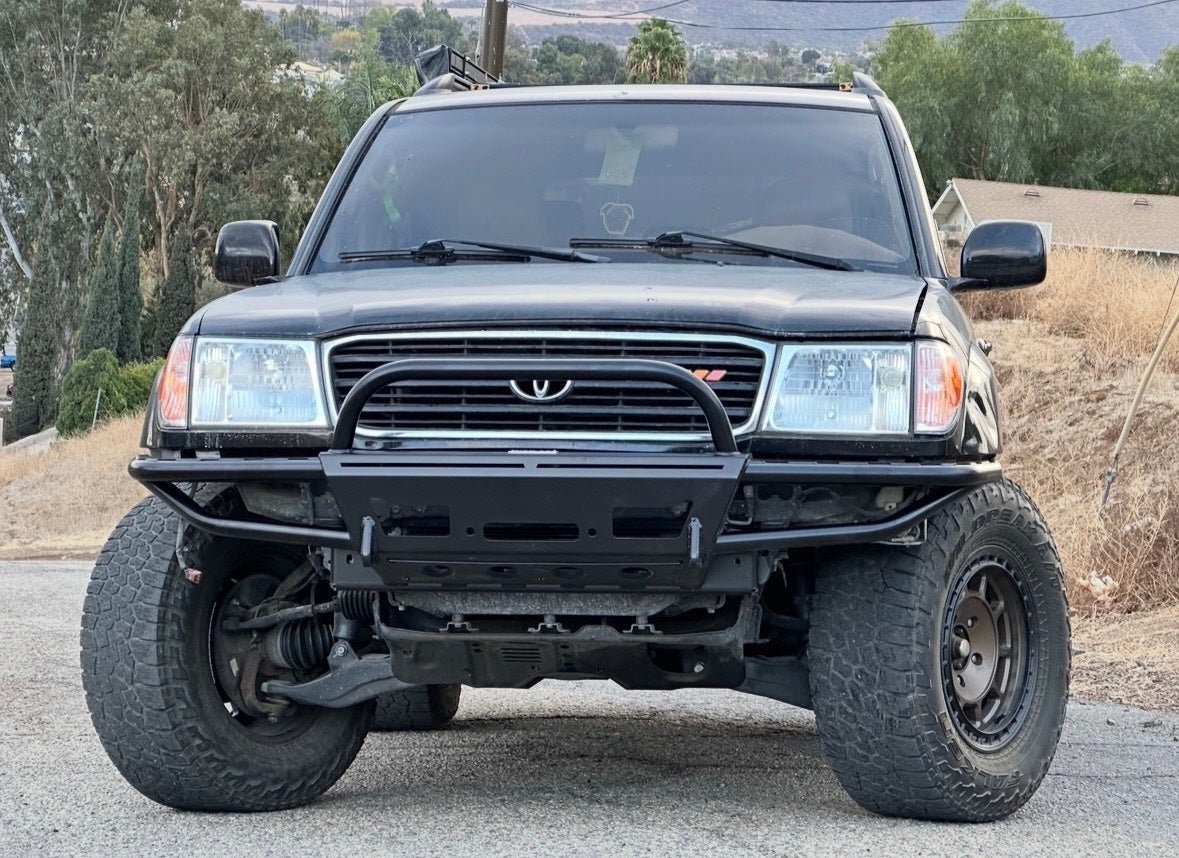

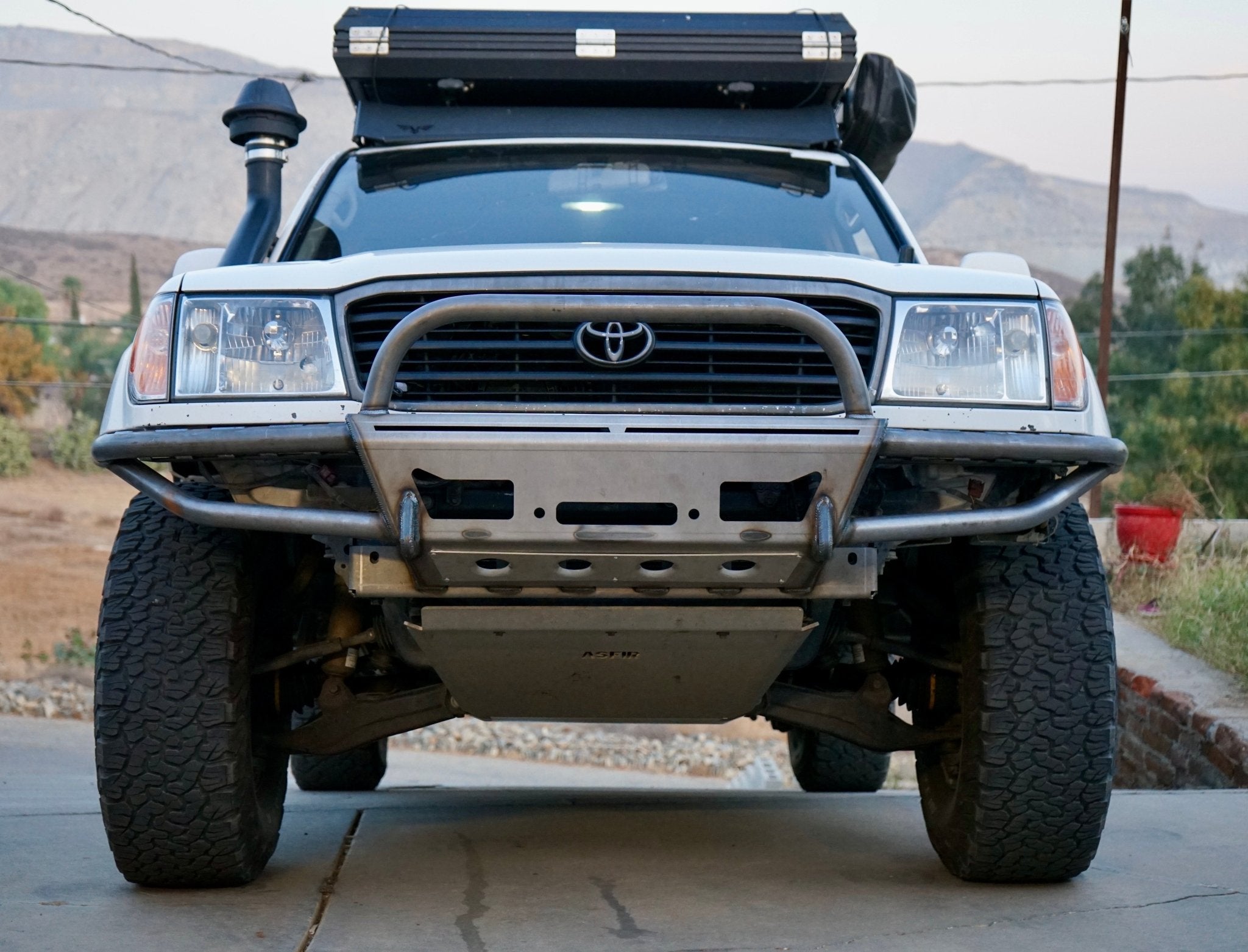

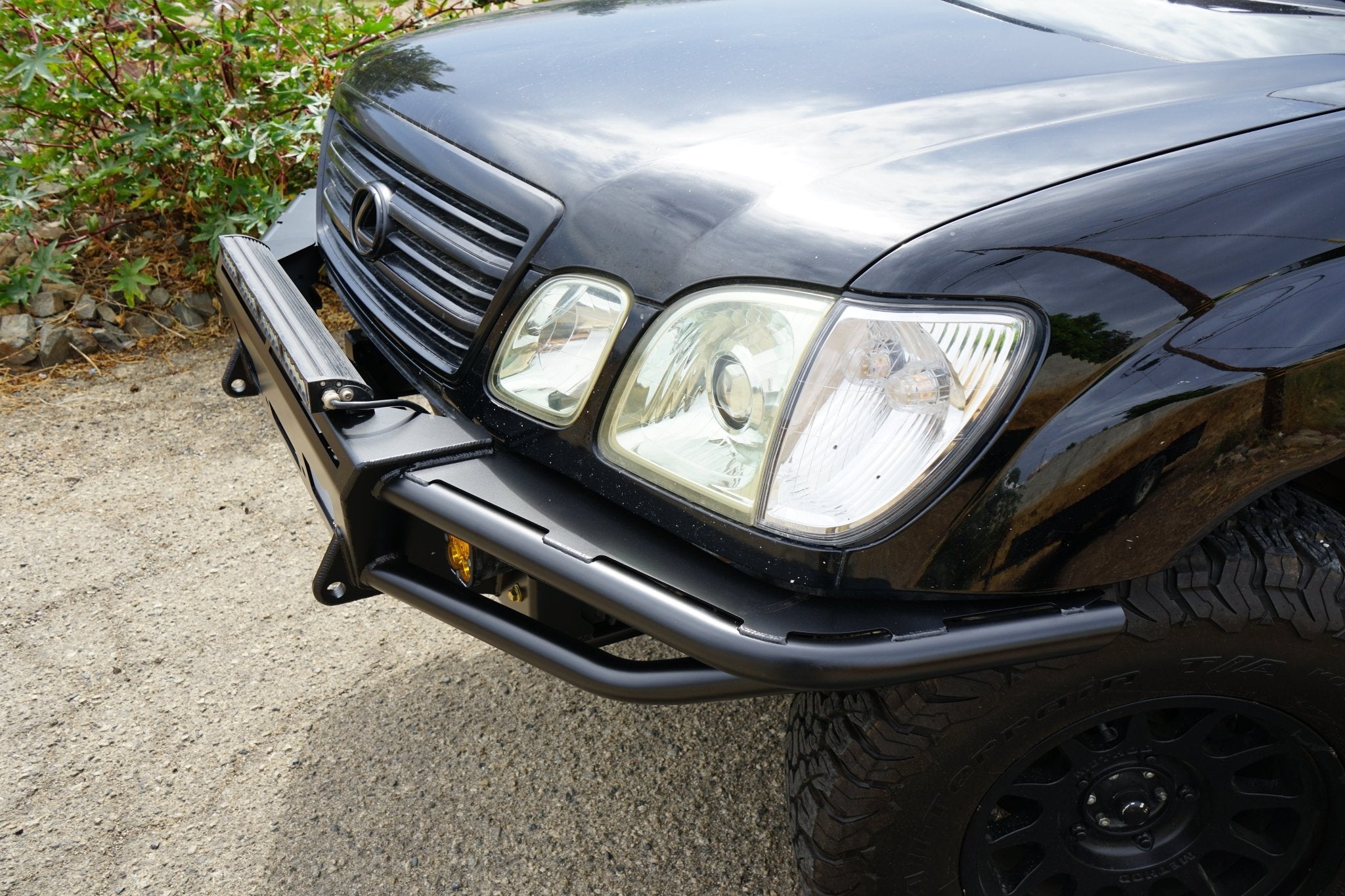

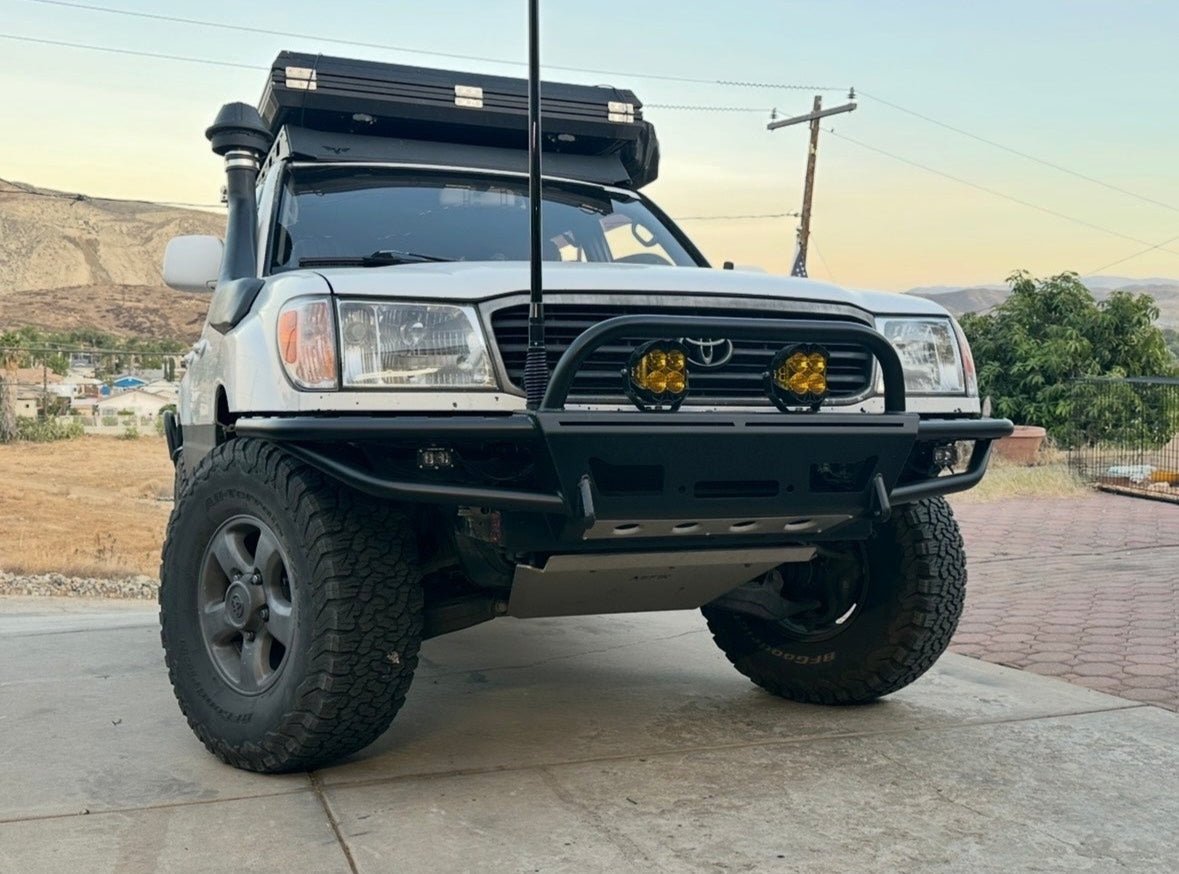

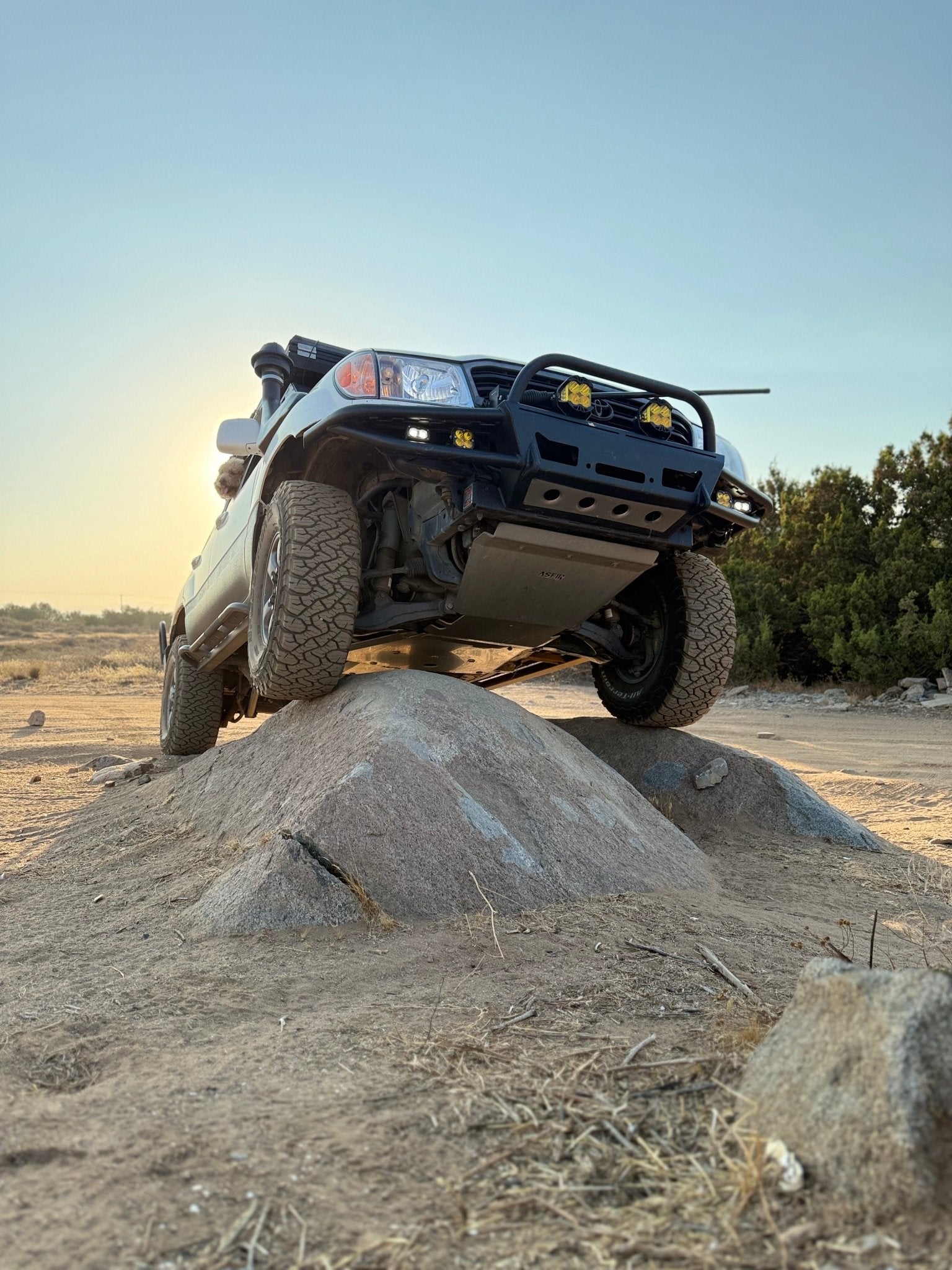

Introducing the STRYKER 100 Front Bumper – a low-profile, precision-engineered solution built for superior fit, function, and performance. Proudly designed in Southern California, this bumper was developed with advanced CAD technology and 3D scanning to ensure a precise fit, while delivering excellent approach angles for confident handling on and off the road.
Key Features:
- Optimized Fit: Fully bolt-on design with some minor frame trimming required.
- Precision Fabrication: Laser-cut and CNC-bent for consistent quality, strength, and reliability.
-
Material Specs:
- 3/16" HRP&O front plate
- 1/4" HRP&O main mounting bracket
- 1/4" gusset supports
- 7/8" clevis shackles for enhanced recovery capabilities
- Easy Winch Access: Features a removable aluminum dimple-die cover, allowing hassle-free access to the winch mounting bolts.
- Lighting Integration: Built-in light pod mounting brackets.

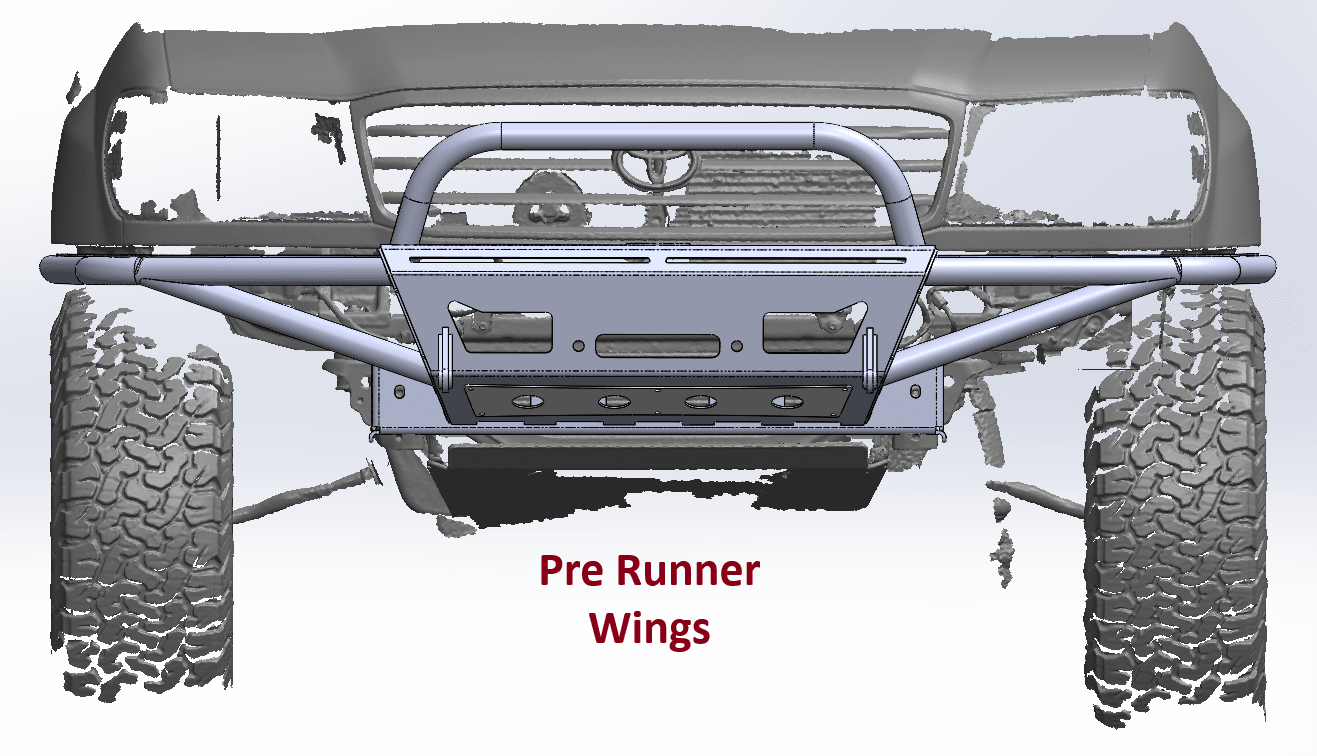

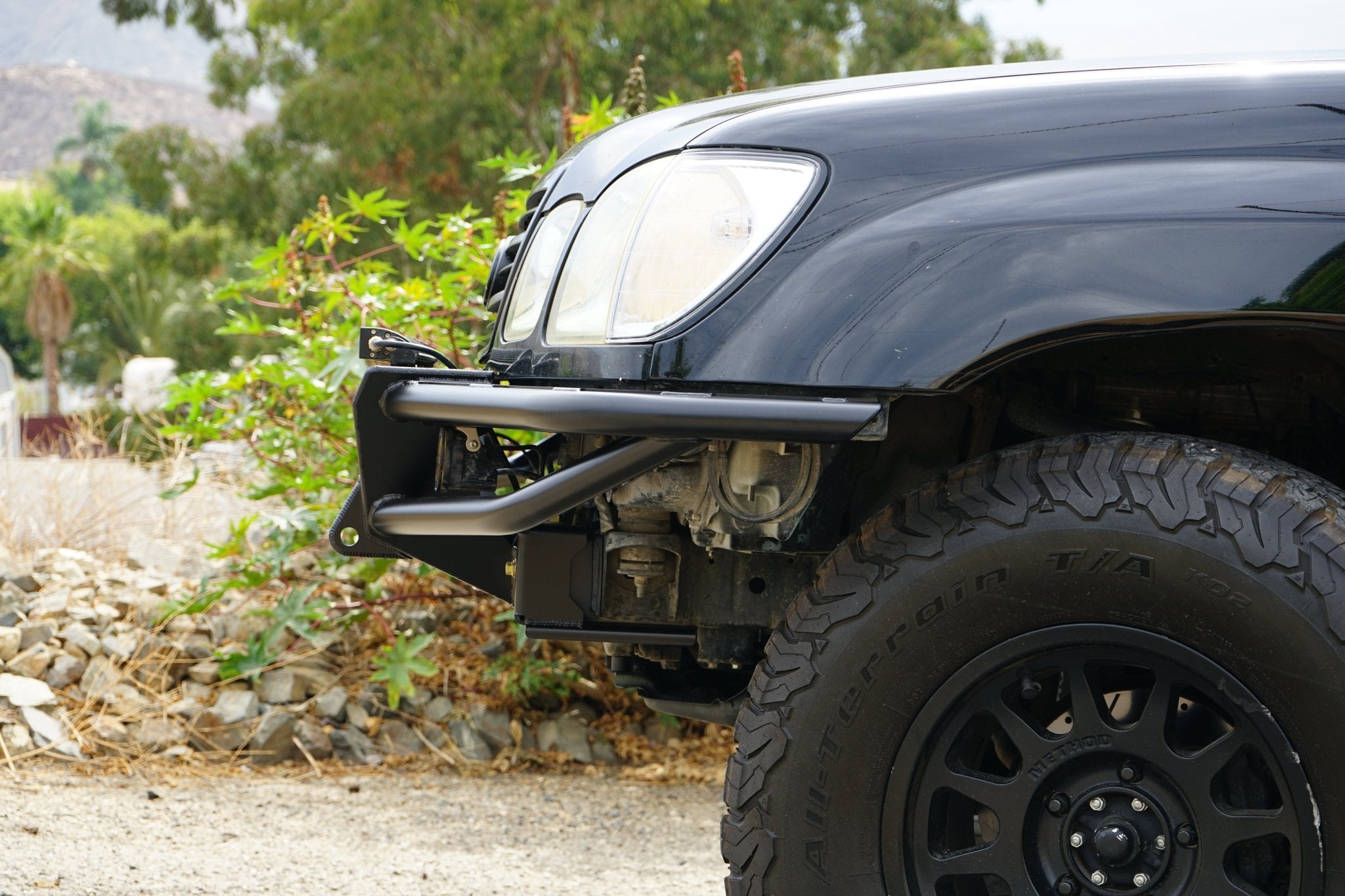

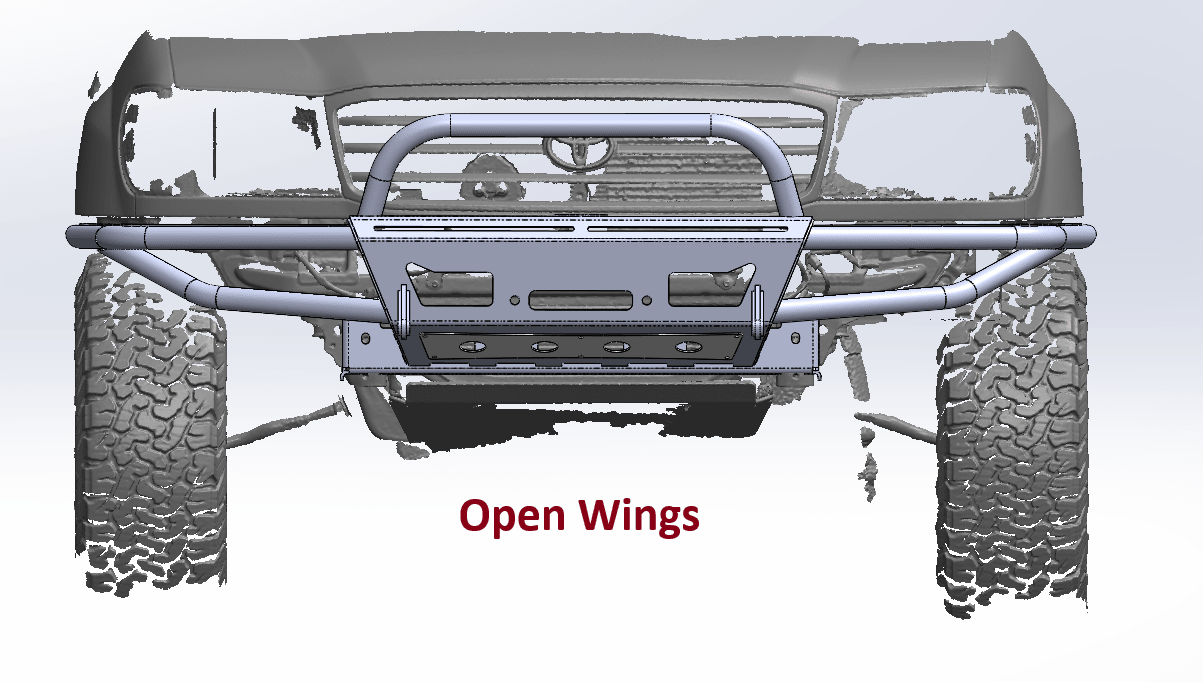

- Wing Material: DOM 1.75” x 0.120” tubing, with wings available in Open or Pre Runner style lower tube designs.
Please Note: Currently compatible with no body lift setups only.
Winch: This bumper is compatible with the Badlands 12K winch. Relocation of control box and trimming of clutch handle is required.
Processing Time
Orders are processed in the order they are received. Lead times are estimates and may vary depending on workload. Delays may occur during high-volume periods, holidays, or due to unforeseen circumstances
