Axle Swap Link Mounts (For LT3)
These mounts have been specially designed to withstand some serious beating.

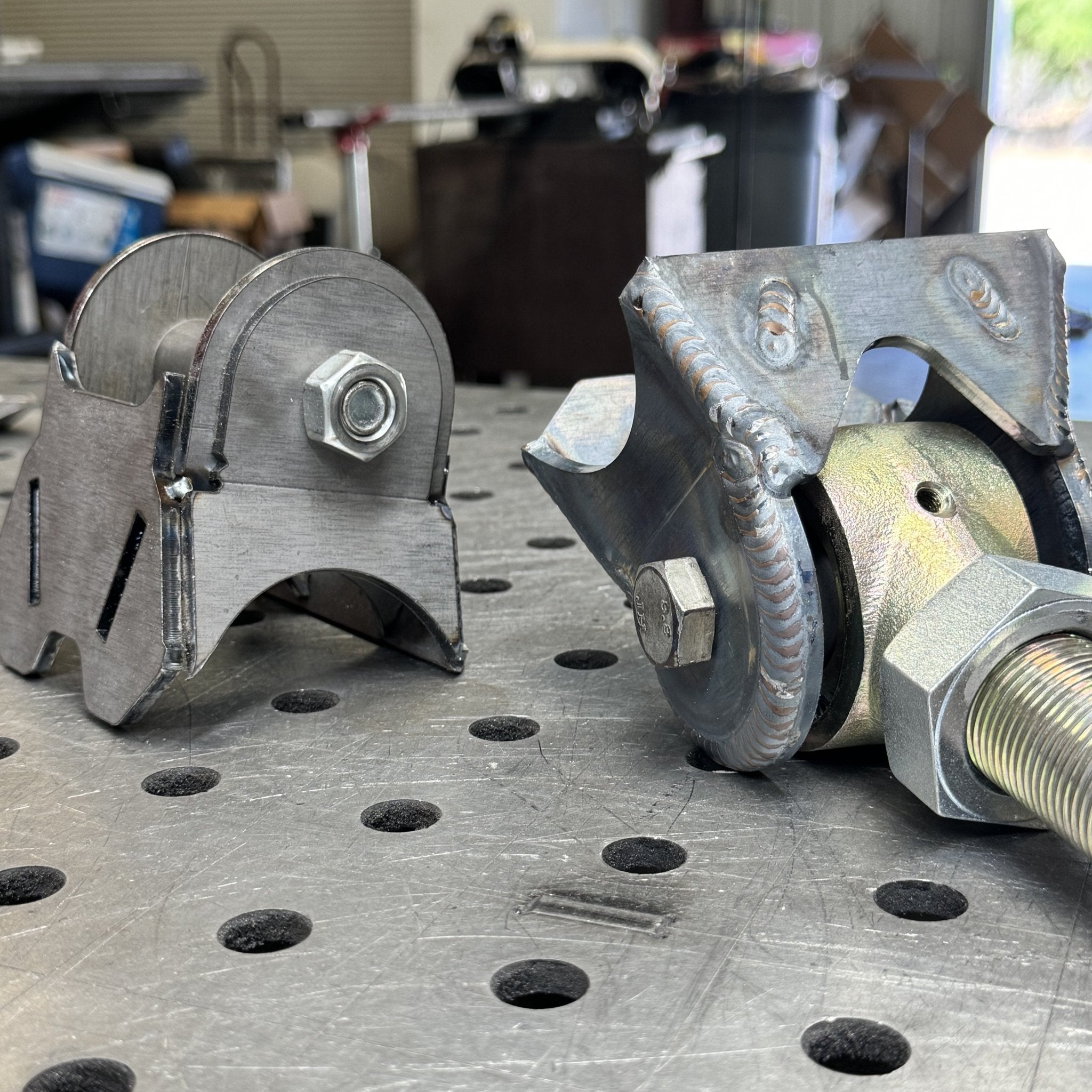

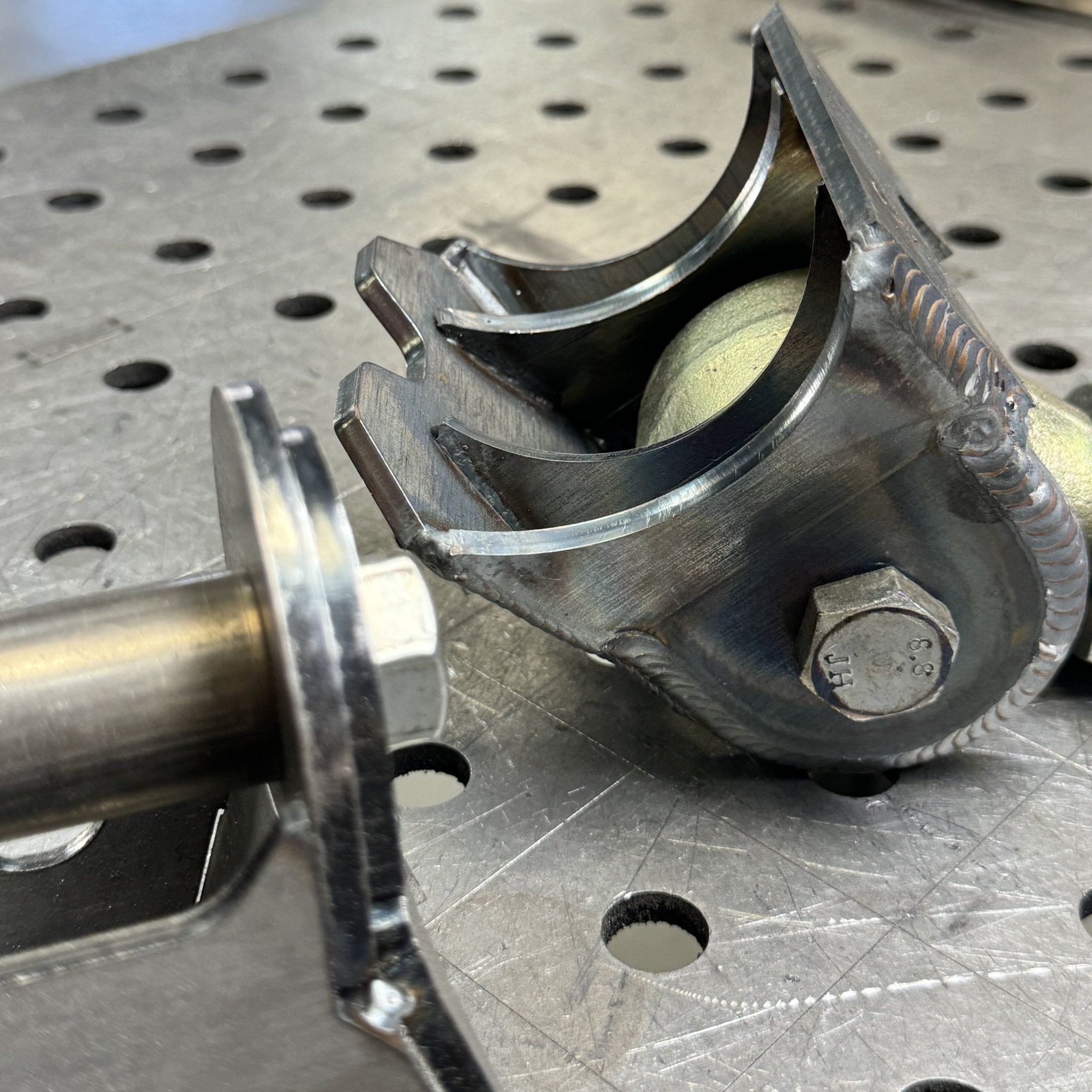

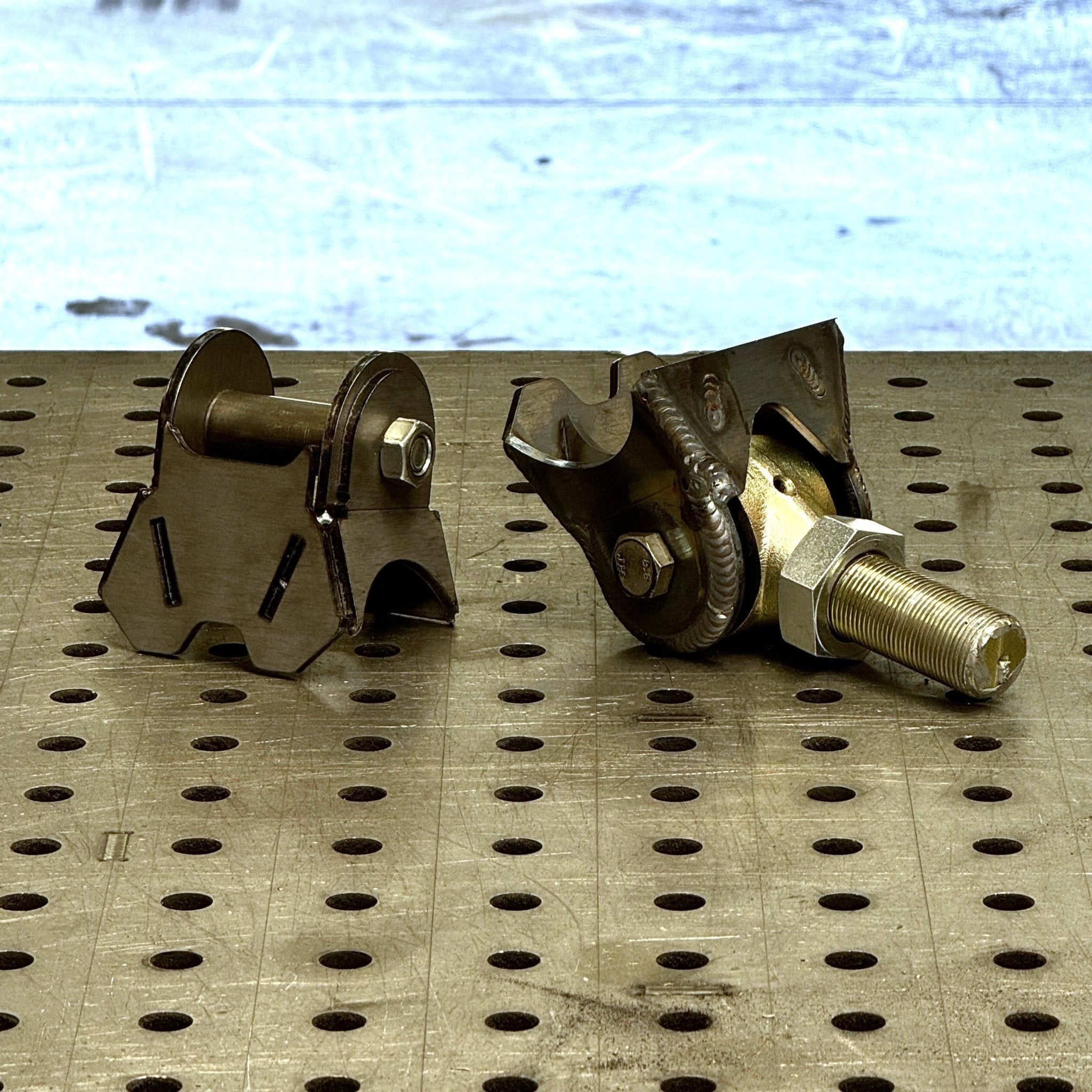

The lowers feature upper and lower plates to provide a full wrap around welding surface to the axle housing, as well as offset inner plates for even more weld surface to spread the load on the housing.

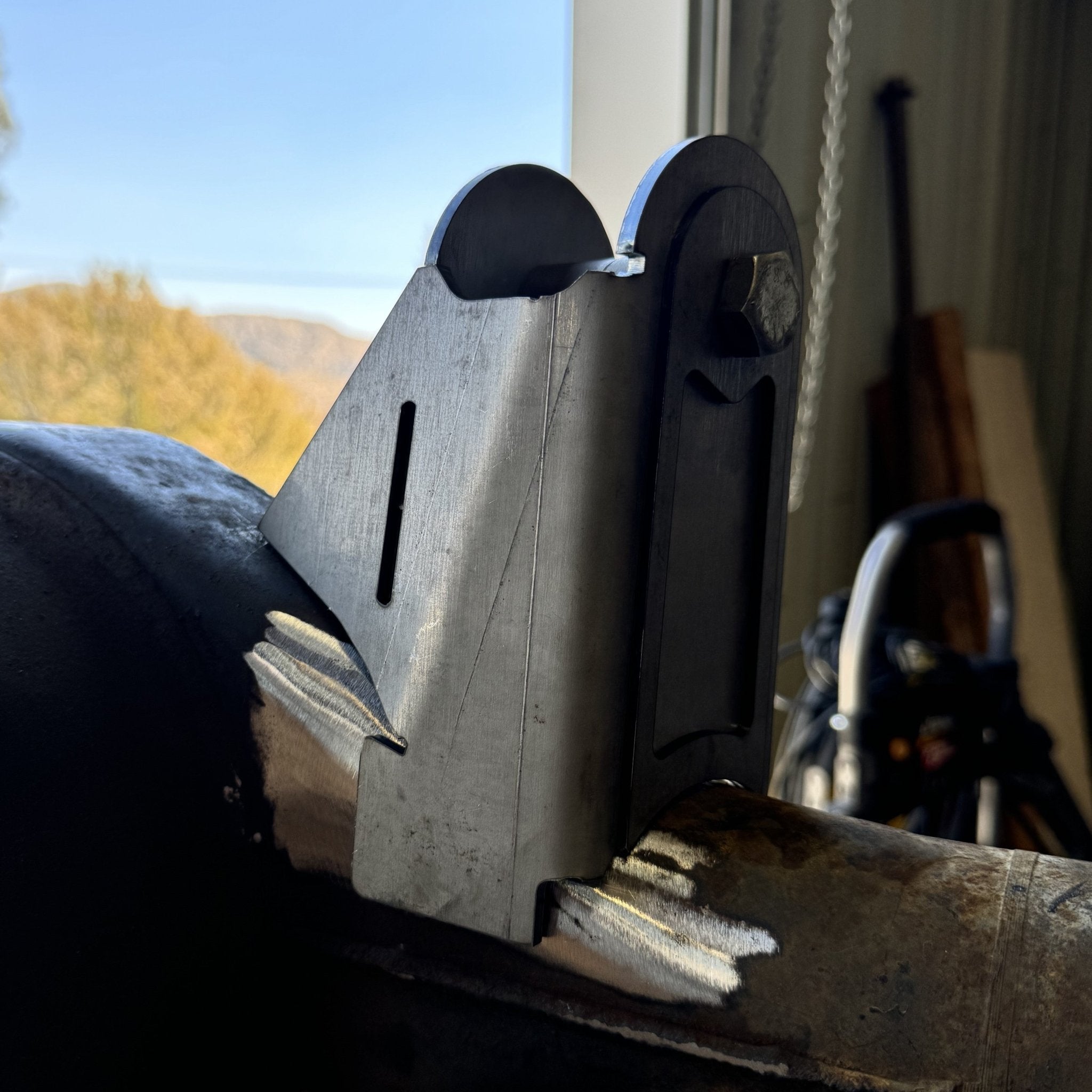

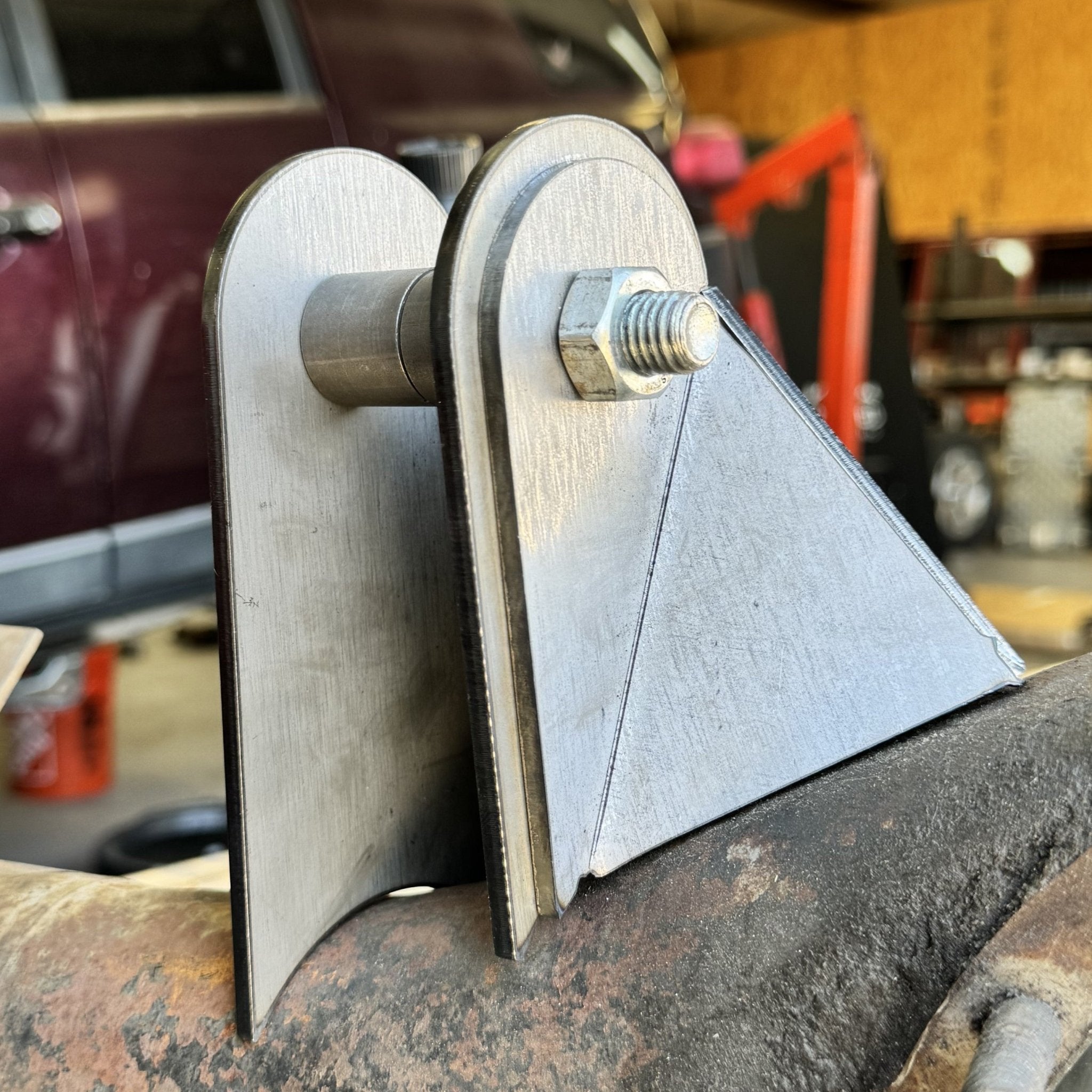

The upper has been carefully crafted to emulate the factory mount, but with more weld surface and thicker material, as well as a built in gusset.
"Why would I need these?" For many of us, the factory axle is good enough for our intended use, however for some of us, we require a stronger, wider, and/or bigger rear end.
Due to joint mounting width, these are specifically designed to work ONLY with our LT3 link kit for customers who want to swap to a bigger Toyota rear end, such as Sequoia, Tundra, or Tacoma, without having to reuse the factory axle side link mounts. These may potentially work with Ford 9" housings as well however has not been confirmed at this time.
We recommend reusing your factory spring pads and panhard mount from your current axle (panhard is integrated into the driver side spring pad) if you intend on continuing to run coil springs.
Kit Includes:
- Fully assembled/welded lower link mounts
- Fully assembled/welded upper link mount
Current Estimated Lead Time: 3-5 weeks
Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
