The 3rd generation Toyota 4Runner (1996–2002) has earned a strong reputation for its durability, reliability, and off-road performance. Whether you’re tackling routine maintenance, repairs, or a complete rebuild, using the correct torque specifications is essential for proper installation, component longevity, and safety.
Below, you’ll find a comprehensive list of torque specs for various components, compiled from trusted resources like Toyota-4Runner.org.
Let’s break down these specs by system for ease of use.
Engine Torque Specs
-
Cylinder Head Bolts:
- First Pass: 29 ft-lbs.
- Second Pass: Tighten an additional 90° turn.
- Follow the correct tightening sequence in the service manual.
- Valve Cover Bolts: 53 in-lbs (4.4 ft-lbs).
- Spark Plugs: 13 ft-lbs. (Use anti-seize on threads if needed.)
- Oil Pan Bolts: 80 in-lbs (6.7 ft-lbs).
- Crankshaft Pulley Bolt (Harmonic Balancer): 217 ft-lbs.
- Timing Belt Tensioner Bolt: 14 ft-lbs.
- Thermostat Housing Bolts: 13 ft-lbs.
- Exhaust Manifold Bolts: 32 ft-lbs.
Suspension Torque Specs
Front Suspension
- Upper Control Arm Bolts: 85 ft-lbs.
- Lower Control Arm Bolts: 101 ft-lbs.
- Front Shock Absorber (Top Nut): 14 ft-lbs.
- Front Shock Absorber (Lower Bolt): 100 ft-lbs.
- Ball Joint (Upper Mounting Bolts): 37 ft-lbs.
- Ball Joint (Lower Mounting Bolts): 59 ft-lbs.
- Stabilizer Bar Bracket Bolts: 22 ft-lbs.
- Stabilizer Bar End Link Bolts: 14 ft-lbs.
Rear Suspension
- Rear Shock Absorber (Top Nut): 18 ft-lbs.
- Rear Shock Absorber (Lower Bolt): 72 ft-lbs.
Drivetrain Torque Specs
- Driveshaft Flange Bolts: 54 ft-lbs.
- Differential (Front and Rear) Drain Plug: 36 ft-lbs.
- Transfer Case Drain Plug: 27 ft-lbs.
- Transfer Case Fill Plug: 27 ft-lbs.
- Axle Nut (Front): 174 ft-lbs.
- Axle Nut (Rear): 103 ft-lbs.
- Propeller Shaft Grease Fitting Plug: 10 ft-lbs.
Brake System Torque Specs
- Front Brake Caliper Mounting Bolts: 90 ft-lbs.
- Rear Brake Caliper Mounting Bolts: 65 ft-lbs.
- Brake Bleeder Screws: 8 ft-lbs.
- Brake Master Cylinder Mounting Nuts: 14 ft-lbs.
- Brake Booster Mounting Nuts: 14 ft-lbs.
- Wheel Lug Nuts: 83 ft-lbs. (Tighten in a star pattern for even pressure.)
Steering Torque Specs
- Tie Rod End Nuts: 67 ft-lbs.
- Pitman Arm Nut: 123 ft-lbs.
- Idler Arm Mounting Bolts: 59 ft-lbs.
- Steering Gear Mounting Bolts: 74 ft-lbs.
Miscellaneous Torque Specs
- Radiator Drain Plug: Hand-tighten; do not overtighten.
- Fuel Injector Retaining Bolts: 7.6 ft-lbs.
- Throttle Body Mounting Bolts: 15 ft-lbs.
- EGR Valve Mounting Bolts: 14 ft-lbs.
Wheel Assembly Torque Specs
- Wheel Lug Nuts: 83 ft-lbs. (Always tighten in a star pattern.)
Tips for Accurate Torque Application

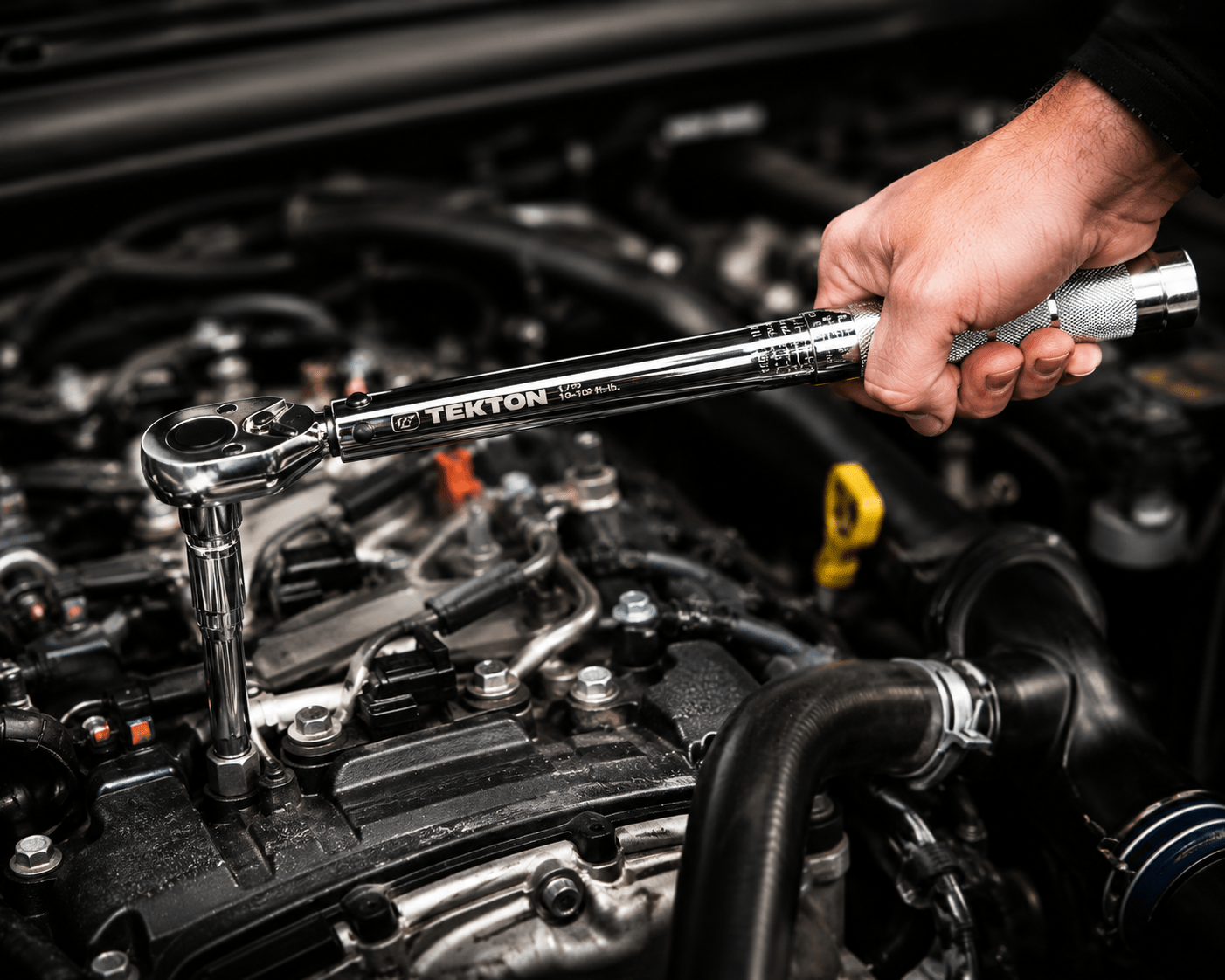

Use a Quality Torque Wrench: For reliable results, use a properly calibrated torque wrench that covers the required torque range.
Follow the Correct Tightening Sequence: Components such as cylinder heads, wheels, and other critical assemblies often require a specific tightening pattern to ensure even clamping pressure.
Recheck Critical Fasteners: After initial use or a short drive, inspect and recheck important suspension, wheel, and drivetrain fasteners when recommended.
Start With Clean Threads: Make sure threads are clean and free of dirt, corrosion, or damage before tightening. Thread condition can significantly affect torque accuracy.
Don’t Exceed the Specification: Applying too much torque can stretch or break fasteners, strip threads, and damage components. Always follow the manufacturer’s recommended specifications.
Final Thoughts
This guide provides a complete list of torque specs for the 3rd gen Toyota 4Runner. Following these specifications ensures that your vehicle is repaired safely and will continue to perform reliably. When in doubt, consult Toyota’s official service manual or trusted resources like the Toyota-4Runner.org forum.
By adhering to these specs, you’ll protect your 4Runner from unnecessary wear and tear, ensuring it’s always ready for your next adventure.
