Universal Coil Over/Shock Towers (OST)
First customer who can produce clean, website worthy install pics, will receive a refund for the full cost of their towers. Does not apply to tax/shipping, or lower mount.
Pics can be sent to [email protected]
Disclaimer: Pictures will be deemed acceptable at the discretion of Freel Good Performance.

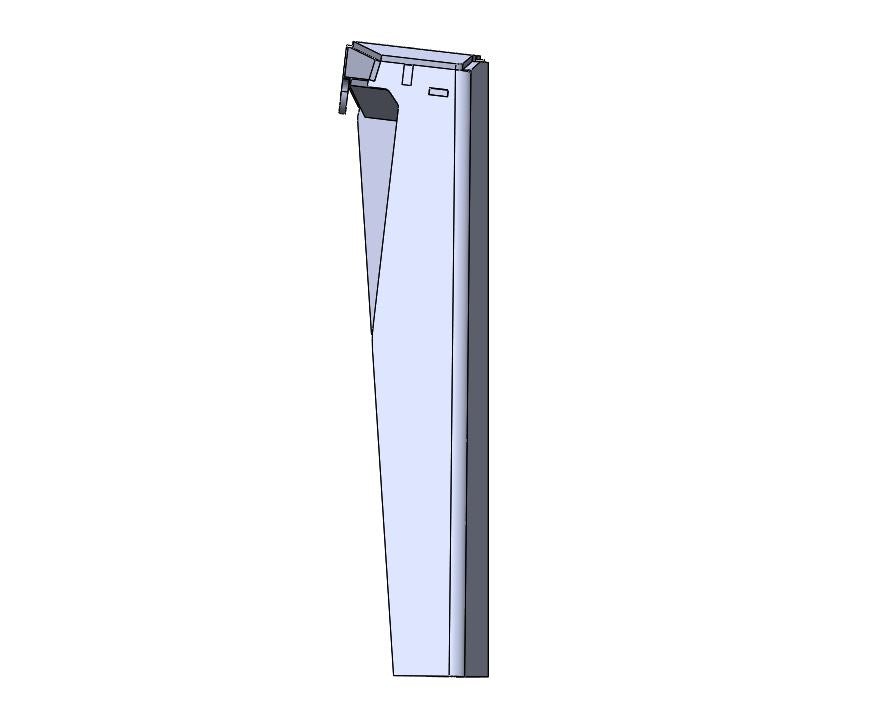

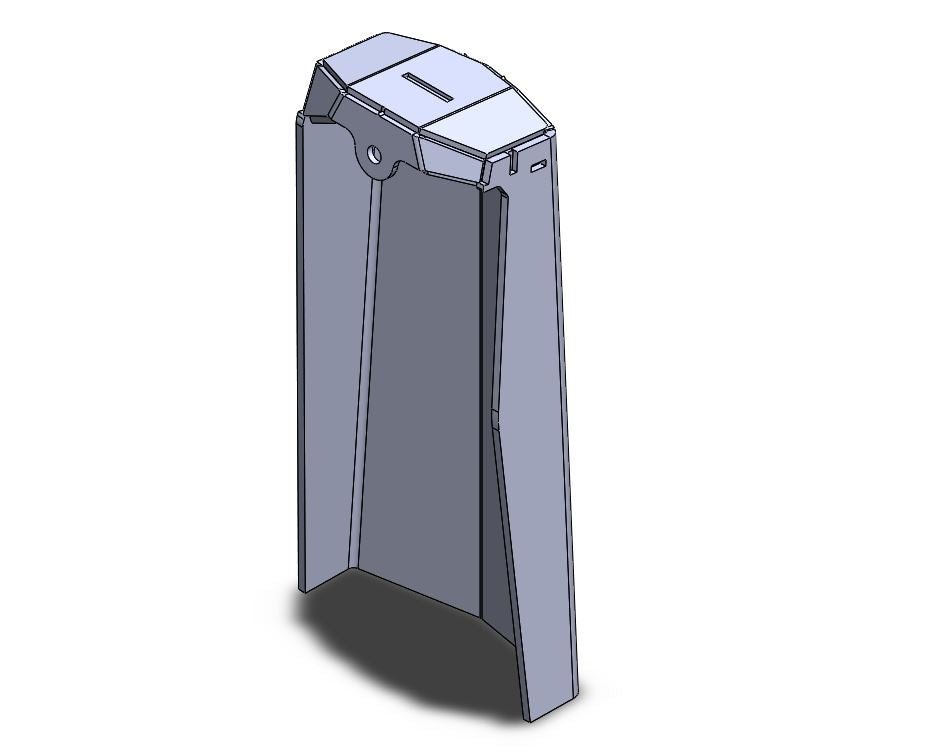

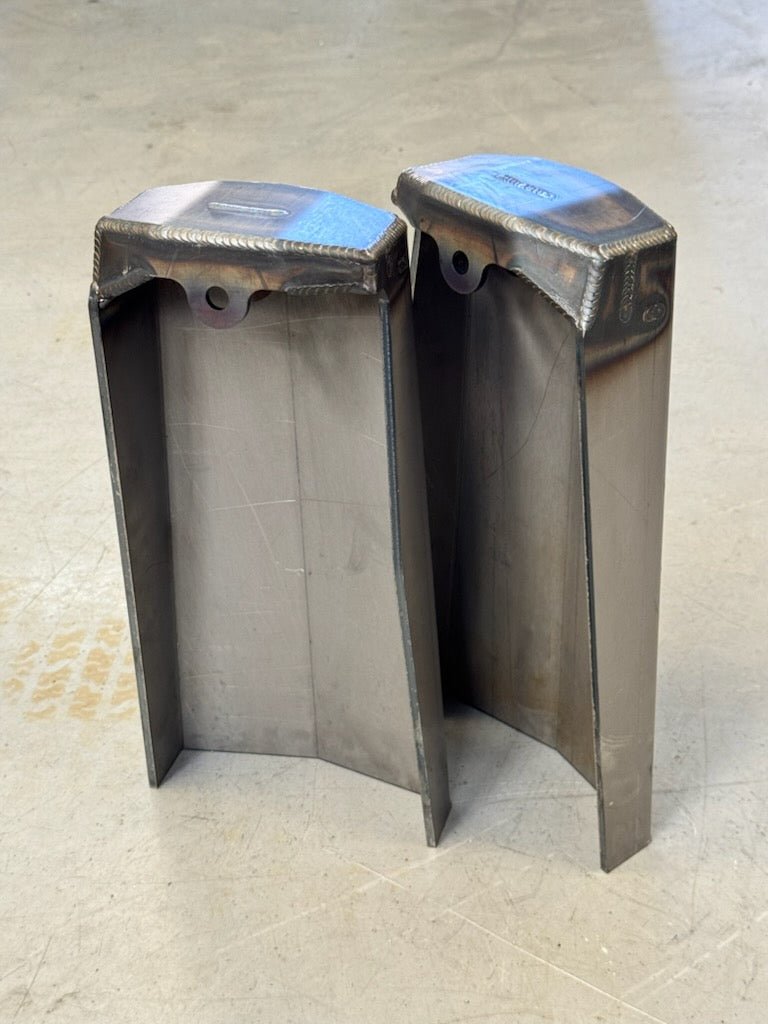

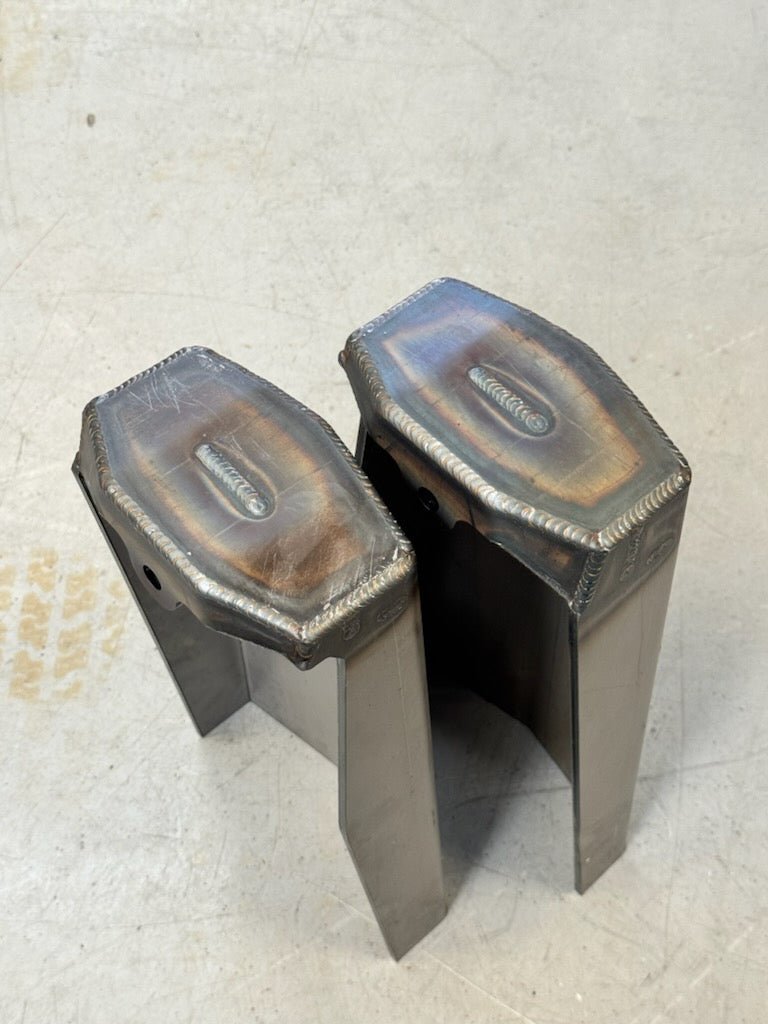

Universal coil over/shock towers, dubbed "OST" (Outboard Shock Tower) designed for those with limited space in mind, without breaking the bank.

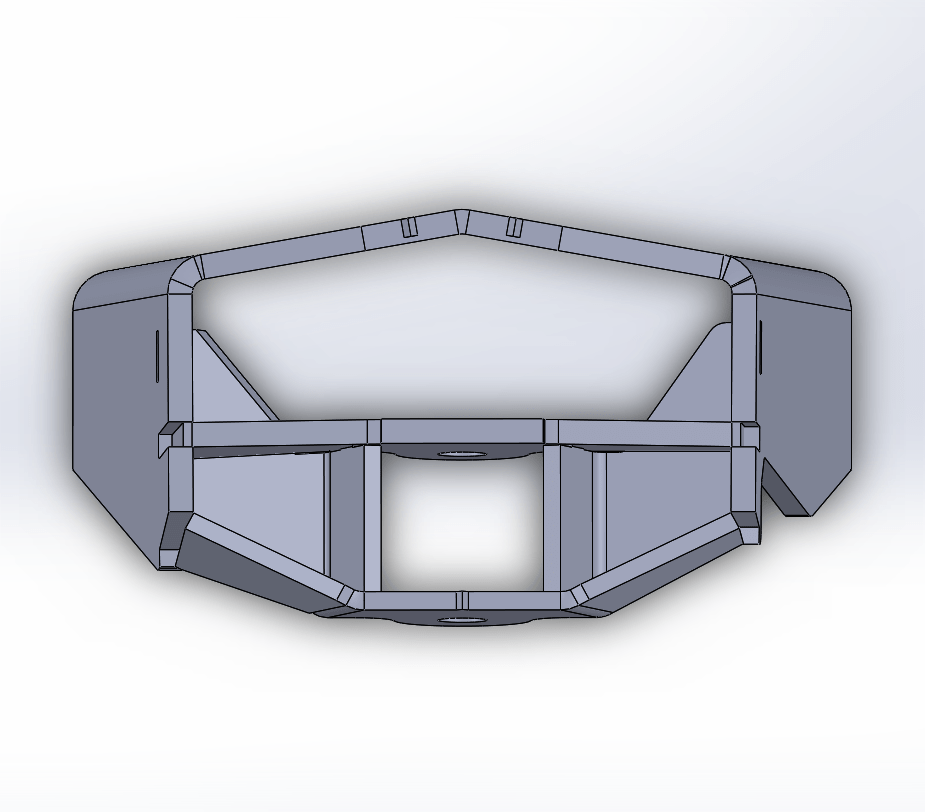

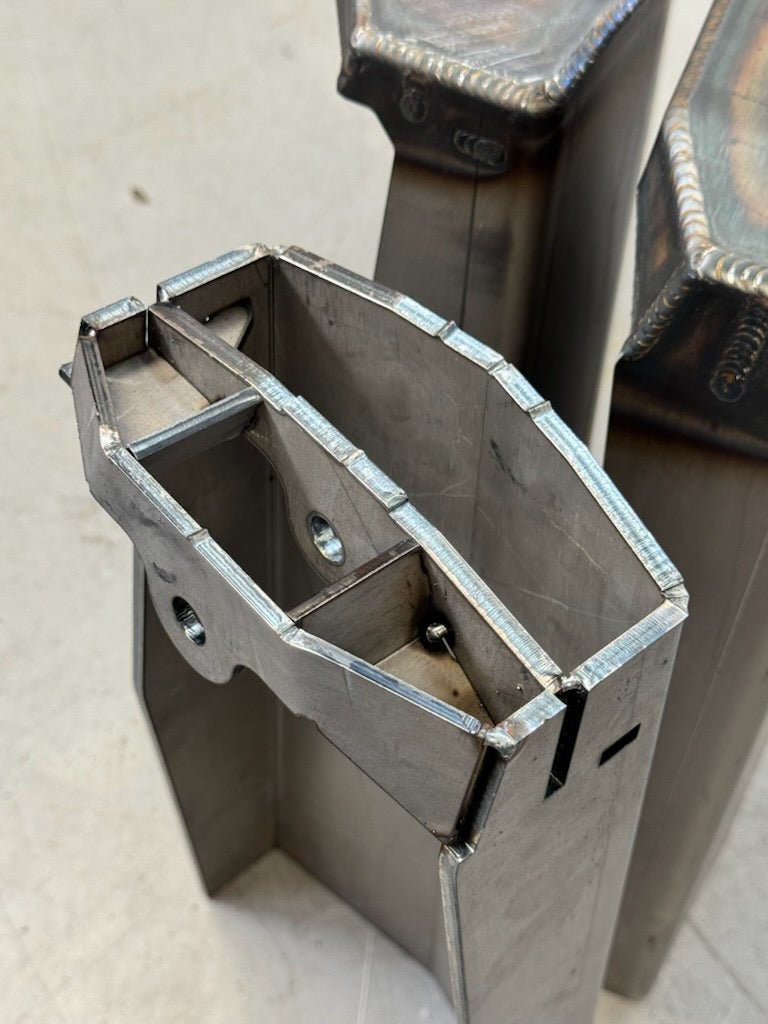

This tower features built in, slotted, and boxed gusseting for maximum strength and durability.

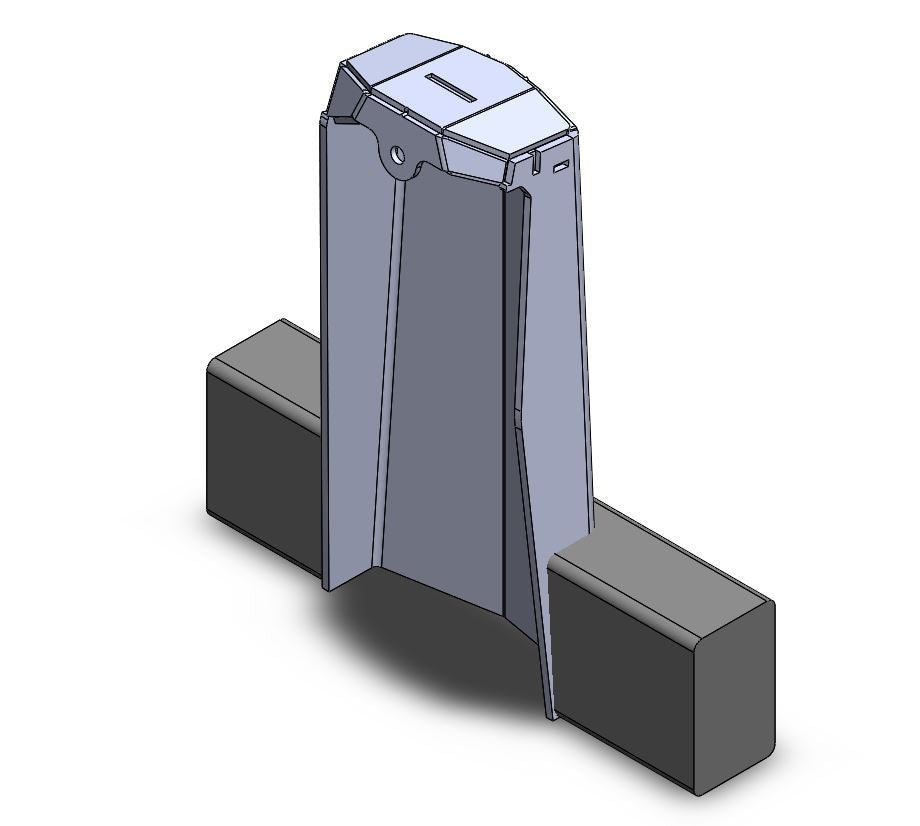

Intended to be frenched (notched) into the frame to aid in tire clearance, but can be cut/trimmed to fit however is needed.
Details:
- Made from 1/4" and 3/16" steel. (Main Body is 1/4")
- Fits up to a 2.5" coil overs, smooth bodies, air shocks, or bypasses.
- Ideal height for use with 10"-16" travel shocks. Results may vary.
- Notched to clear resi hoses.
- 16.75" from bottom of mount to eyelet, 18" total height, 8.5" wide at the base.
- Upper mounting tabs sit at a 5 degree angle.
- 1.5" tab width fits most standard shock misalignments.
- Includes flanged 1/2" Grade 8 hardware.
- Kit includes two (2) towers.
Options:
- Welded/Non-Welded

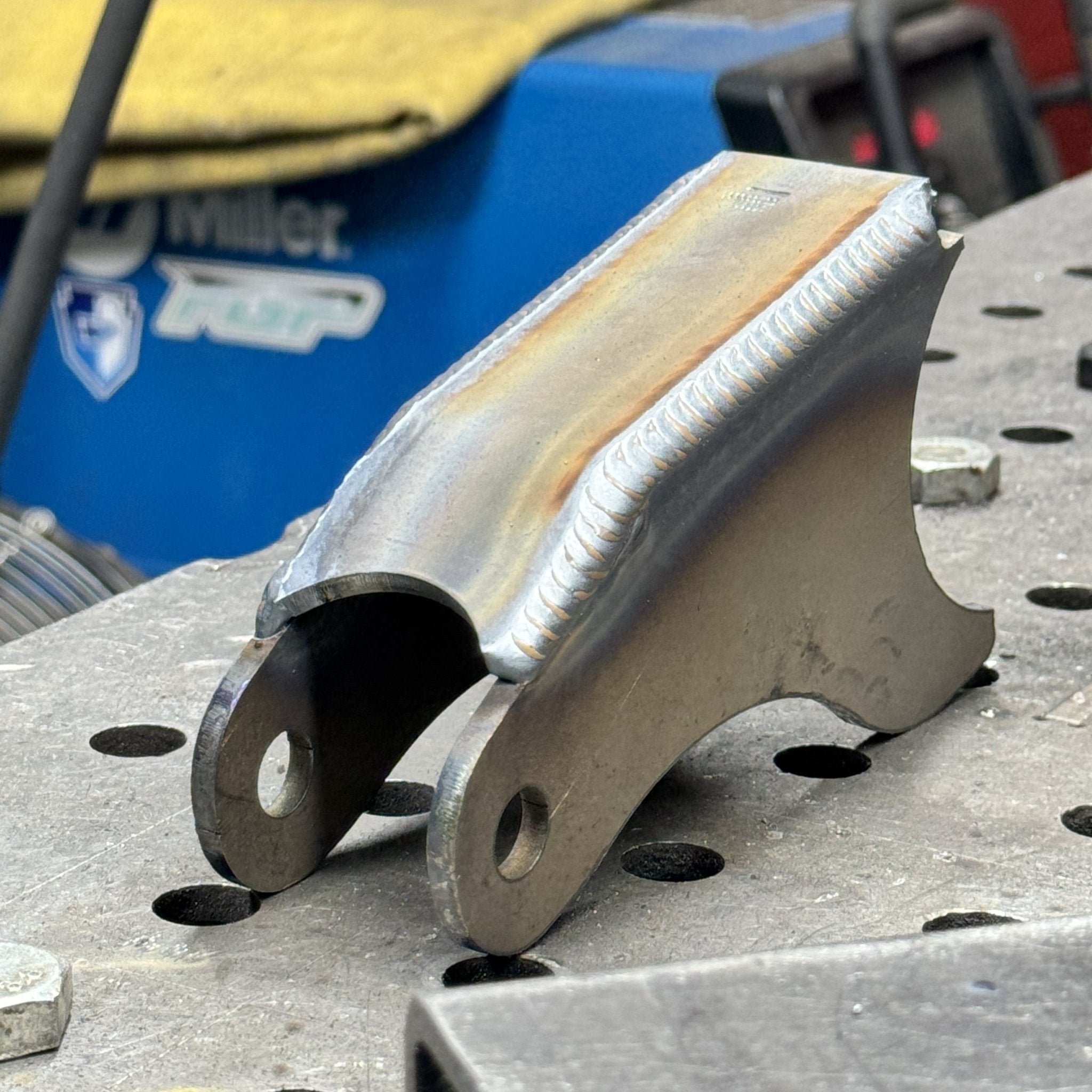

- With/Without lower mounts
Note: This is a universal, non chassis specific, item. Sheet metal may need to be cut/removed depending on your application.
Current Estimated Lead Time: 3-6 weeks.
Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
