CS144 Alternator Swap Harness 1996–2002 Toyota 4Runner (5VZ-FE & 3RZ-FE)
If you’re upgrading your 3rd gen 4Runner to a CS144 high-output alternator, this is the harness that makes the swap clean, simple, and reliable.
The factory alternator wiring on the 1996–2002 4Runner uses a Toyota 3-pin connector (IG–S–L). Most CS144 alternators use a GM-style regulator plug, which means cutting, splicing, or building your own wiring. This plug-and-play CS144 adapter harness eliminates the guesswork and lets you connect your new high-output alternator the right way.
Whether you’re running a winch, dual batteries, off-road lighting, onboard air, or a full overland setup, a CS144 swap is one of the best electrical upgrades you can make to a 3rd gen. This harness keeps the install clean and factory-looking — no hacked wiring under the hood.
In house harness by TEQ Offroad for Toyota owners who actually use their trucks. Retro yellow-orange-red wiring as a hat tip to the Toyota heritage!
Features
-

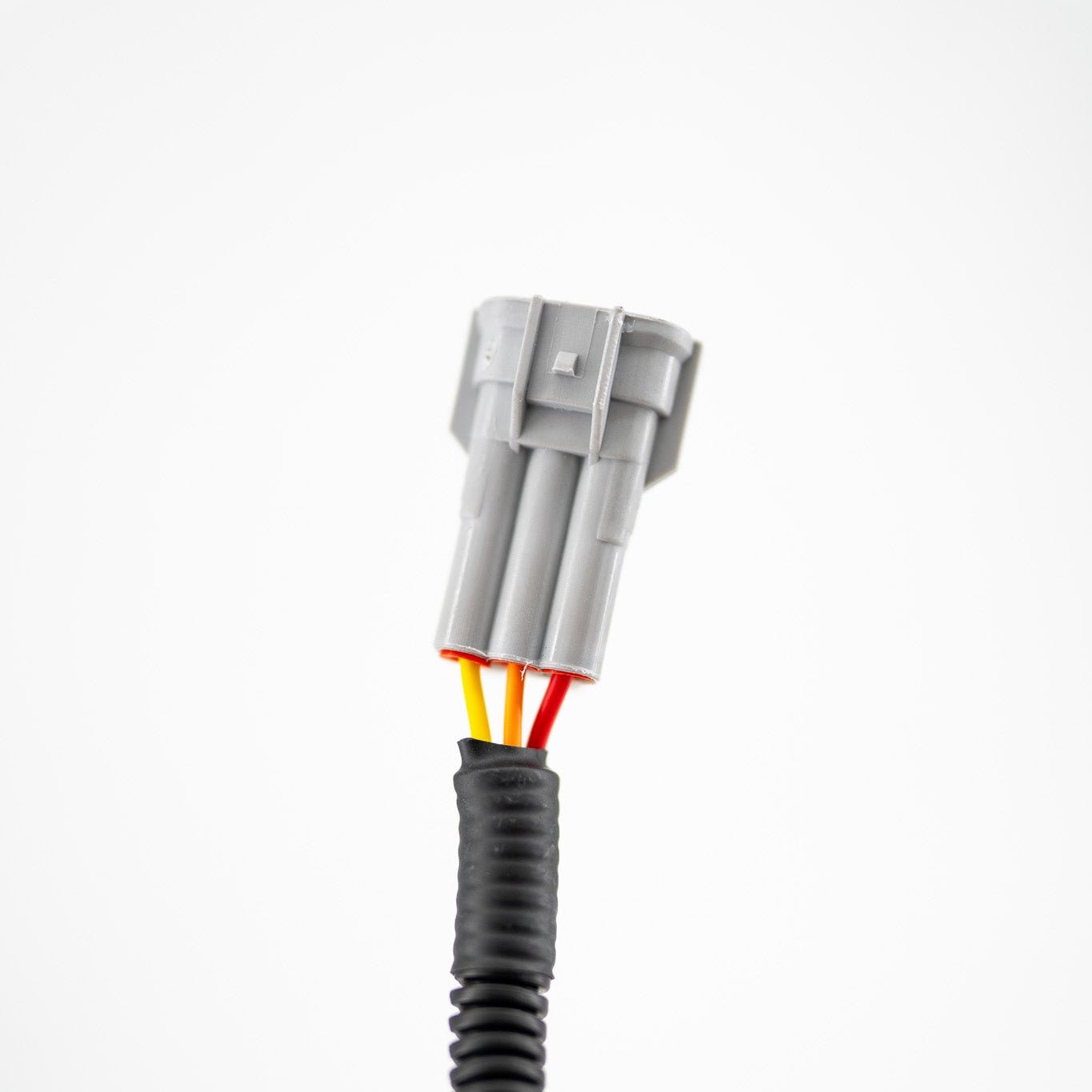

Plug-and-play CS144 alternator adapter harness
-
Converts Toyota 3-pin (IG–S–L) to GM CS144 regulator connector
-
No cutting or splicing required
-
Clean, factory-style installation
-
Designed for reliability in off-road and high-vibration environments
-
Perfect for high-output alternator upgrades (140–200+ amps)
Vehicle Fitment
-
1996–2002 Toyota 4Runner (3rd Gen)
-
5VZ-FE 3.4L V6
-
3RZ-FE 2.7L 4-cylinder
-
Requires factory 3-pin Denso alternator connector
- Also Fits 1st gen Tacoma and 80 Series Land Cruisers!
Note: This harness handles the wiring portion of the CS144 swap. Mounting brackets and pulley alignment modifications may vary depending on your engine and alternator configuration.
Why Upgrade to a CS144?
The stock 3rd gen alternator is only 70–80 amps. Once you add modern accessories, it struggles to keep up — especially at idle.
A CS144 provides:
-
Higher output at idle
-
Support for winches and dual battery systems
-
Stable voltage for lights, compressors, and overland gear
-
Proven reliability in demanding off-road builds
Built for Toyota Owners Who Love Offroading
At TEQ Offroad, we design parts the way we’d want them on our own rigs — simple, durable, and made to work the first time. No shortcuts. No unnecessary complexity. Just a clean solution for a common 3rd gen 4runner upgrade.
